SWIVEL RODS OR ADAPTOR FOR STAINLESS STEEL RODS
Swivel rods or adaptor for stainless steel rods212_j

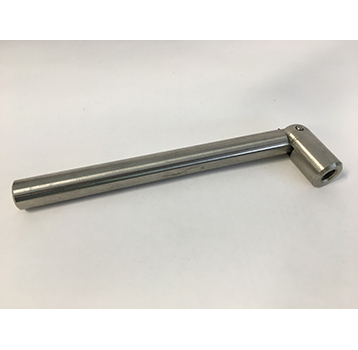

Stainless Steel 303 Rods or Adaptor 1/2" Dia.. Jointed with 5/16" UNC thread on both ends
Ideal Accessory for threaded rods Series 212_FEM for use on radius conveyors. The second picture shows the option of using a straight rod with a threaded end and a jointed adaptor with a 5/16" unc fem thread. Ref: 212-5-516 + 212-JA-516
OPTIONS AVAILABLE
| SKU | Description | CAD | Add |
|---|---|---|---|
| 212-5-516J | 1/2" x 5" with pivot head threaded 5/16 | DWG STP IGS |
|
| 212-9-516J | 1/2" x 9" with pivot head threaded 5/16 | DWG STP IGS |
|
| 212-12-516J | 1/2" x 12" with pivot head threaded 5/16 | DWG STP IGS |
|
| 212-JA-516 | Jointed Adaptor 5/16" unc x 1/2" dia | DWG STP IGS |
|
*CAD Drawing files available in 2D and 3D format
DOCUMENTATION
Swivel rods or adaptor for stainless steel rods
Specs
Published on 2016
