1-12 on 12 results for Guide Rails

Guide Rail CVR1.70RIB

Rail Code CVR1.70RIB, 0.67" base, 1.70" wide with Rib, white UHMW insert with stainless steel frame

Guide Rail CVR10

Conveyor guide rail No. CVR-10, 0.67" wide base, 1/2" round top, white uhmw insert with Stainless Steel frame 2mm thick (overall thickness 0.72" +/-0.03")

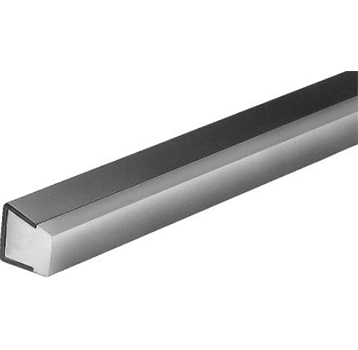

Guide Rail CVR11

Rail No. CVR-11, 0.67" wide base, 1/2" modified top, white uhmw insert with Stainless Steel frame 2mm thick

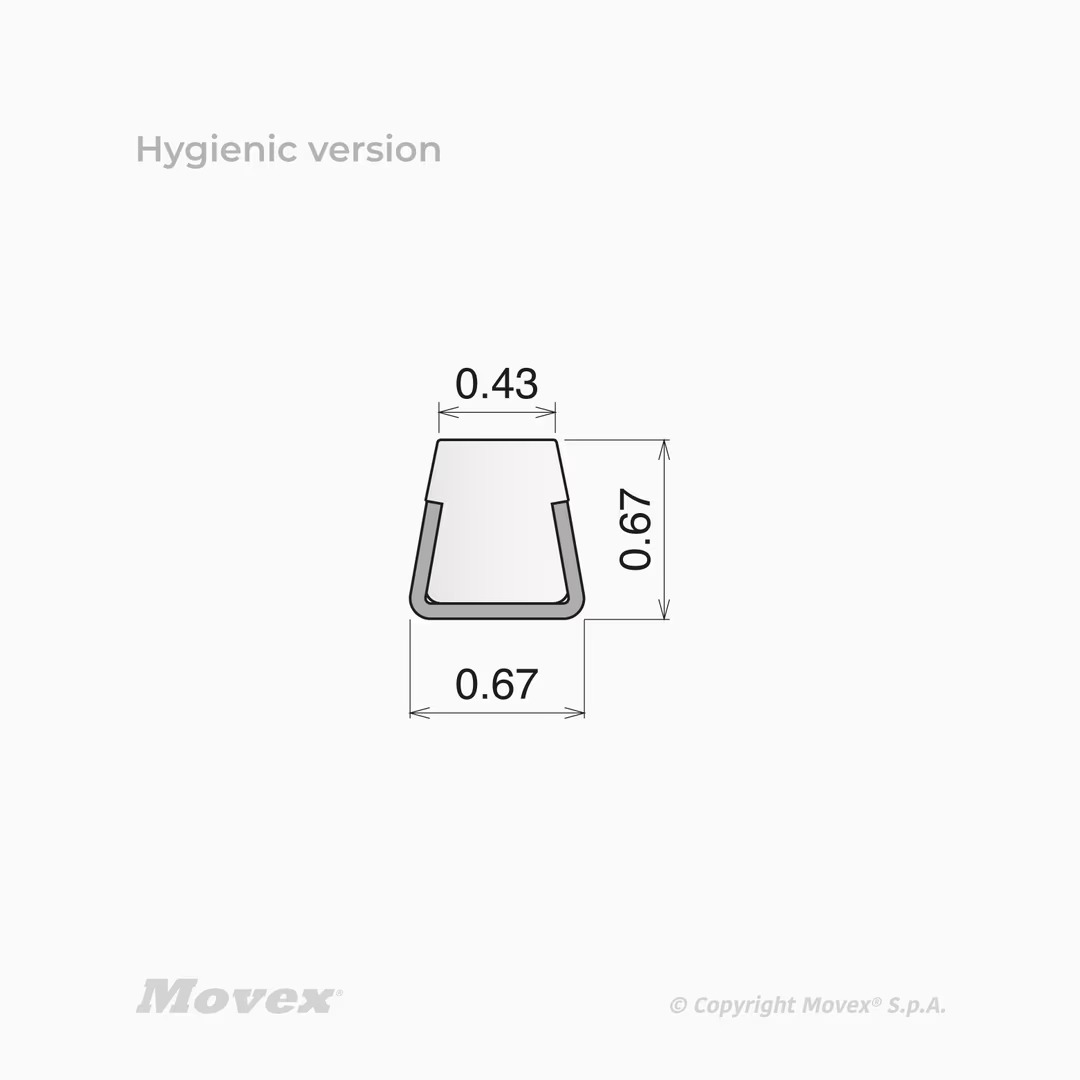

Guide Rail CVR12

Rail No. CVR-12, 0.67" wide base, 1/2" flat top, white uhmw insert with Stainless Steel frame 2mm thick (overall thickness 0.74" +/-0.03")

Guide Rail CVR13S

Rail code CVR-13S, 0.67" base, white UHMW insert with stainless steel frame

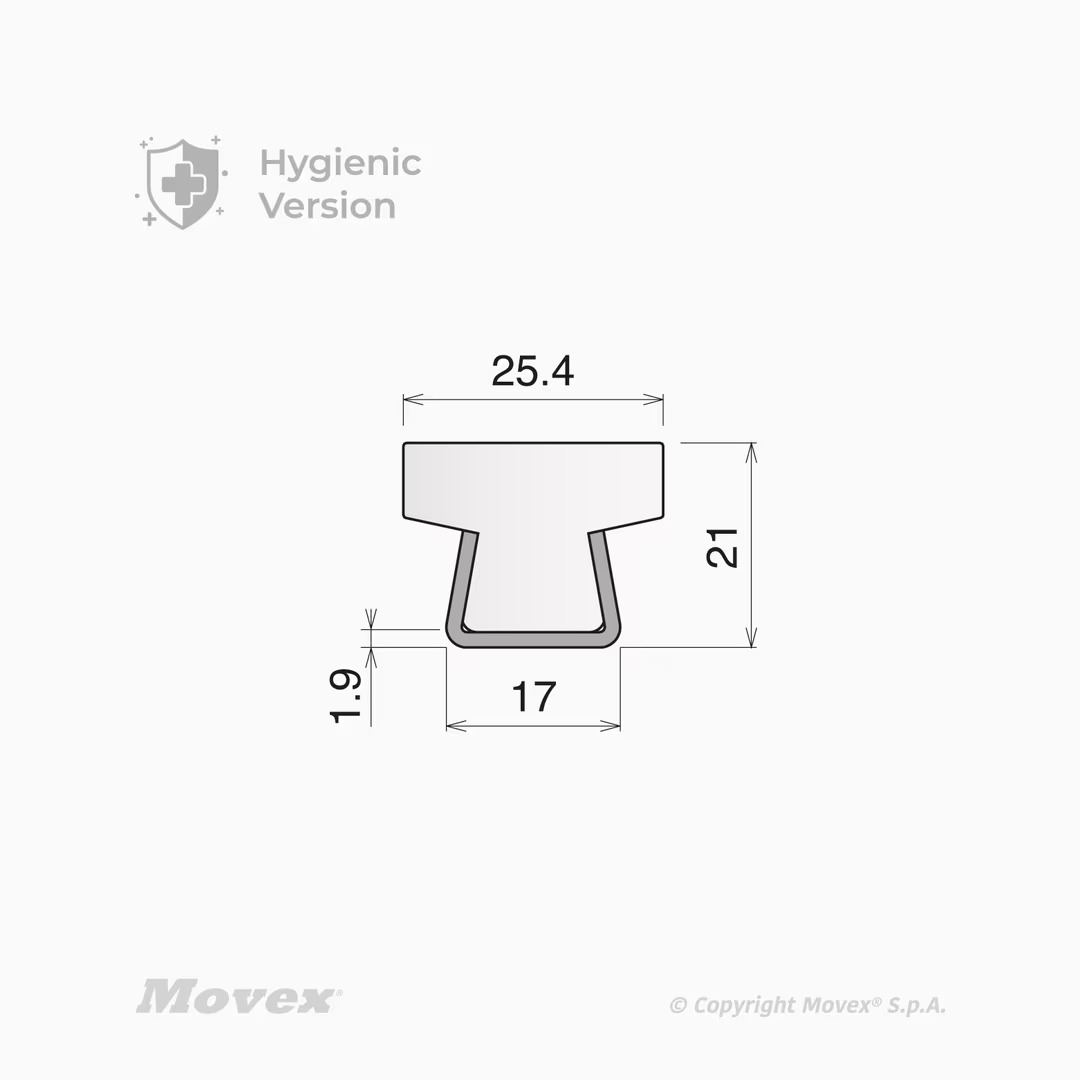

Guide Rail CVR15

Rail No. CVR-15, 0.67" wide base, 1" flat top, white uhmw insert with Stainless Steel frame 2mm thick

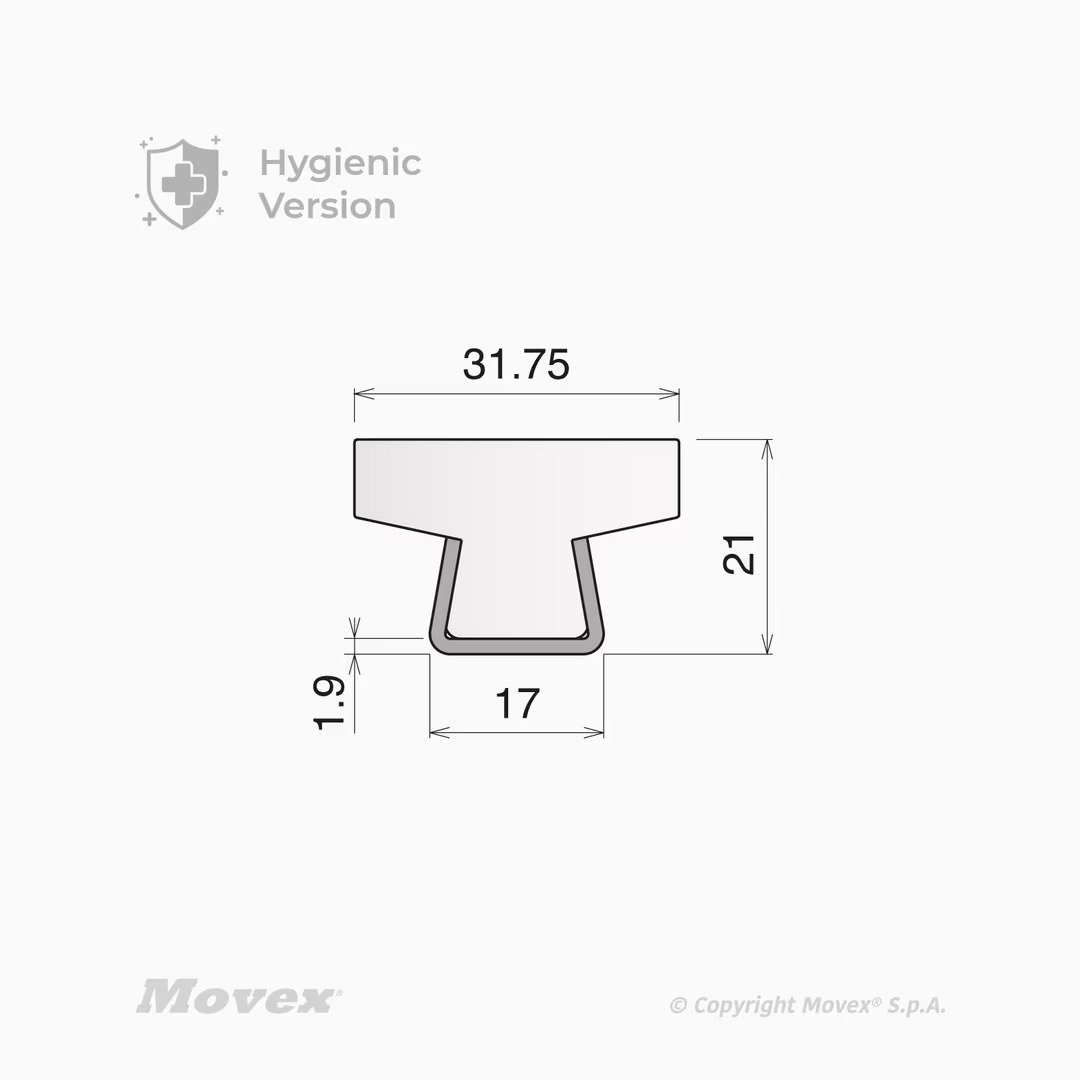

Guide Rail CVR16

Rail No. CVR-16, 0.67" wide base, 1-1/4" flat top, white uhmw insert with Stainless Steel frame 2mm thick (overall thickness 0.86" +/-0.03")

Guide Rail CVR17S

Rail code CVR-17S, 0.67" base, white UHMW insert with stainless steel frame, offset 1.19" wide

Guide Rail CVR23

Rail No. CVR-23, 0.67" wide base, 1" flat top, white uhmw insert with Stainless Steel frame 2mm thick (overall thickness 0.74" +/-0.03")

Guide Rail CVR29S

Rail No. CVR-29S, 0.67" wide base, white uhmw insert with Stainless Steel frame 2mm thick, Made for "PET bottle" support

Guide Rail CVR37

Rail No. CVR-37, 0.67" wide base, 2-1/4" flat top, white uhmw insert with Stainless Steel frame 2mm thick (thickness 0.86" +/-0.03")

Guide Rail CVR55S

Rail No. CVR55, "L" shape, white uhmw with Stainless Steel frame 2mm thick, 0.84" High with L = 3/8" X 1/4" (thickness 0.86" +/-0.03")
